V-350 Ultrathin Van Refrigeration Units

It is only 120mm height of the van refrigeration units, -18℃ ~ +25℃ temperature controlled, ultral slim type for most of cargo vans with 6-9m³ van box.

Model: V-350

Condenser Height: 120mm

Cooling Capacity: 3350W(1.7℃）1730W（-17.8℃）

Box Volume (m³): 6-9m³

Discription

Technical

Features

Application

INQUIRY

Discription

Brief Introduction of V-350 ultrathin van refrigeration units

KingClima V-350 is ultrathin van refrigeration systems, this small van reefer units are rooftop mounting, driven by vehicle engine and apply for 6-9 m³ van container box. The most main feature of V-350 van refrigeration units is its very thin height only with 120mm height, which can meet all of the city height limitation.

Technical

Technical Specification of V-350 Ultrathin Van Refrigeration Systems

Model			V-350
Temperature Range In Container			-18℃ ~ +25℃
Cooling Capacity	0℃	+32℉	3350W(1.7℃）1730W（-17.8℃）
Driven Model			Non-independent Engine Driven
Voltage DC (V)			12V
Refrigerant			R404a
Refrigerant Charge			0.9Kg
Box Temperature Adjustment			Electronic digital display
Safety Protect			High and low pressure switch
Defrosting			Hot gas defrost
Compressor	Model		TM13
	Displacement		131cc/r
Condenser	Coil		Aluminum micro-channel parallel flow coils
	Fan		2 Fans
	Dimensions&Weight		950×820×120 mm
Evaporator	Coil		Aluminum foil with internal ridge copper tube
	Fan		1 Fan
	Dimensions&Weight		670×590×144 mm
Box Volume (m³)	m³		6-9m³

Features

Features of V-350 Ultra Slim Van Refrigeration Unit

-Rooftop mounted unit and slim condenser design;
-Strong refrigeration,cooling fast with short time;
-High-strength plastic enclosure,elegant appearance;
-Quick installation,simple maintenance an low maintenance cost;

Application

The V-350 van refrigeration is perfectly solving the problem of height limitation in some of city. If install our original van refrigeration, it may a little high for 2.2m height limitation. Our customers give a good feedback to V-350 van refrigeration units.

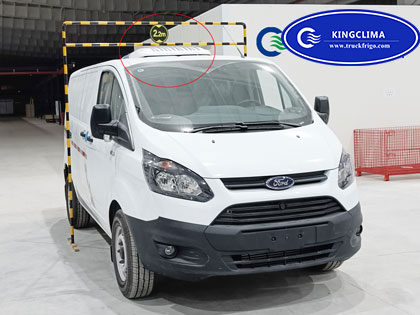

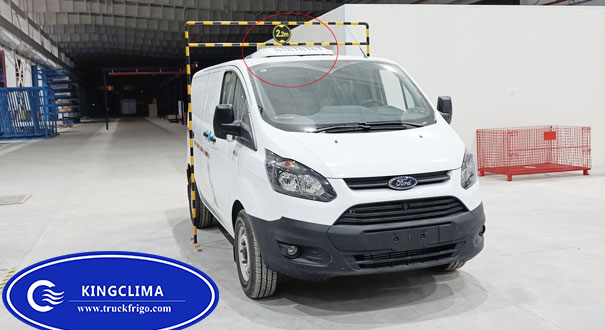

V-350 Van Refrigeration Units for Ford Van

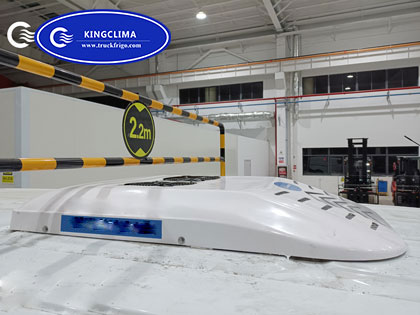

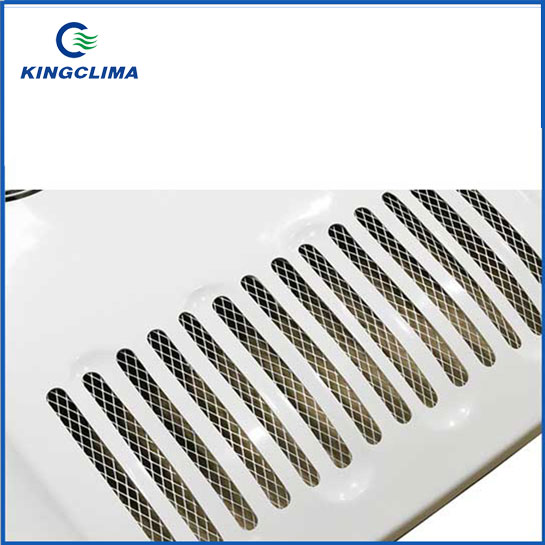

V-350 Condenser with 120mm Height

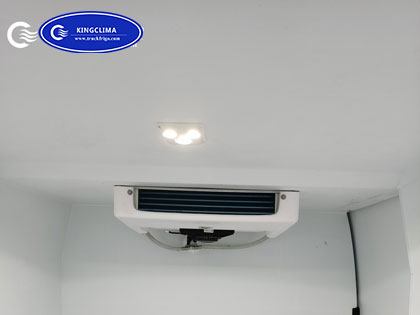

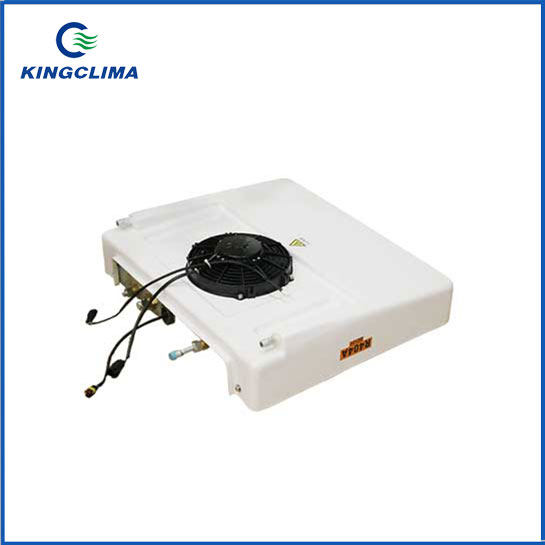

V-350 Van Refrigeration Evaporator
