K-260C Truck Refrigeration Unit

K-260C Small Truck Reefer Unit is designed for small truck box fresh cool products express.

Driven Type : Vehicle Engine Driven

Cooling Capacity : 2015W(0℃/+32℉)

Application : 6-11 m³

Compressor : 5s11/108cc/r

Introduction

Technical Data

Features

INQUIRY

Introduction

Brief Introduction of K-260C Small Truck Reefer Units :

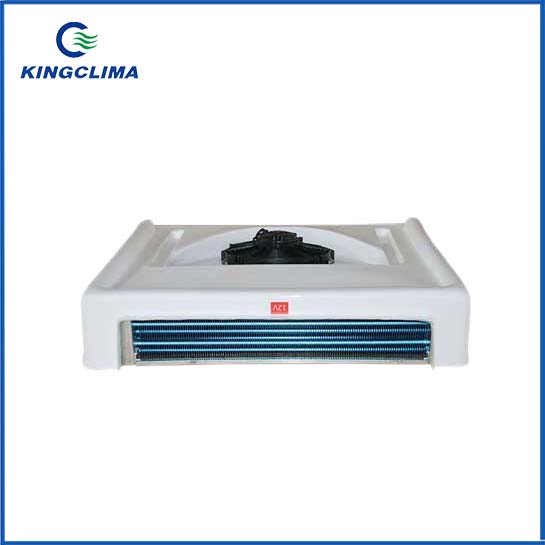

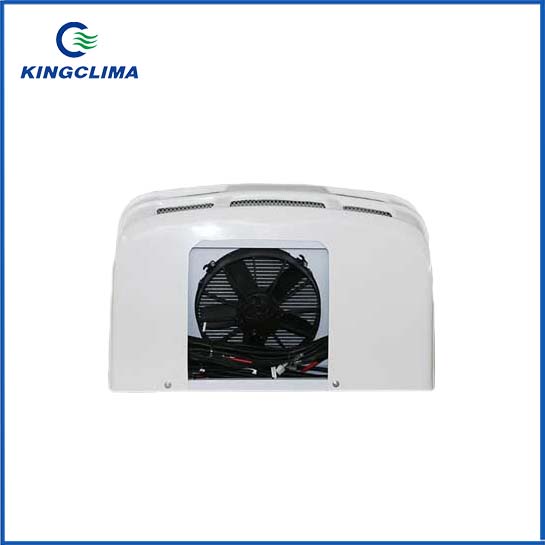

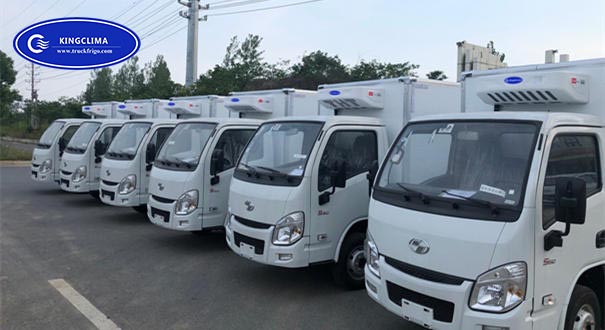

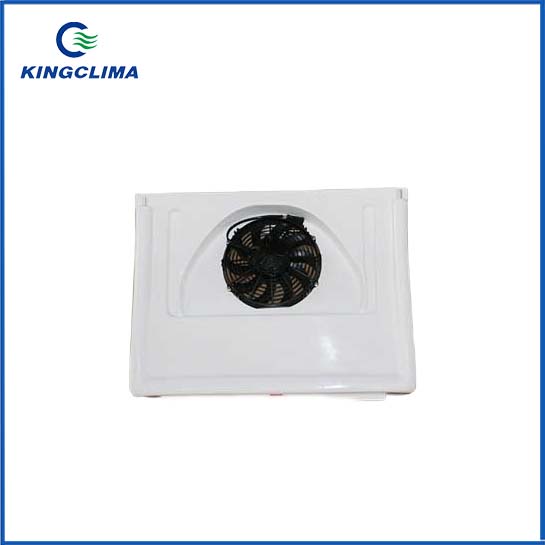

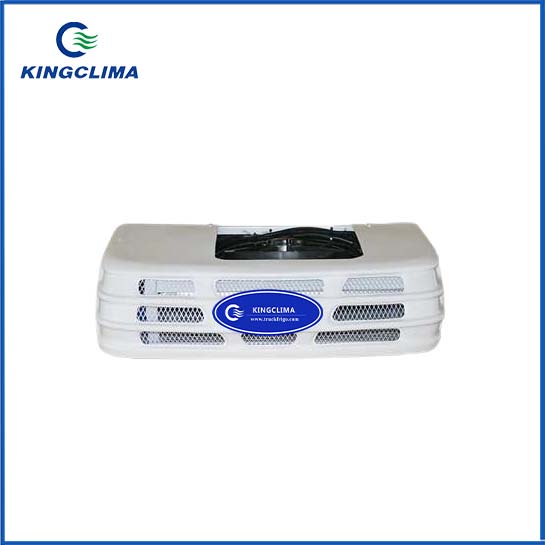

KingClima K-260C Truck chiller units have front mounting and rooftop mounting, driven by vehicle engine and apply for 6-11 m³ Truck body box.

K-260C small truck reefer unit is designed for small truck box for fresh cool products express.

KingClima K-260C Truck Refrigeration System Optional Functions :

● AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
● Optional electric standby system AC 220V/380V

Technical Data

Model		K-260C
Temperature Range in Container		-5℃ ~ +15℃
Temperature Range in Container
Cooling Capacity	0℃/+32℉	2015W
Compressor	Model	QP16
	Displacement	163cc/r
	Weight	8.9 Kg
Condenser	Coil	Aluminum micro-channel parallel flow coils
	Fan	One Fan (DC12V/24V)
	Dimensions	880×553×230 mm
	Weight	19 kg
Evaporator	Coil	Copper Tube & Aluminum Fin
	Fan	One Italy Spal Fans (DC12V/24V)
	Dimensions	790558191
	Weight	19kg
Voltage		DC12V / DC24V
Air volume		900m³/h
Refrigerant		R404a/1.3kg
Defrosting		Hot gas defrosting(Auto./Manual)
Application		6~11m³

Features

KingClima K-260C Truck Refrigeration System Features :

● Multi-function controller with microprocessor control system
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor , Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc
