Brief Introduction of K-260RS Electric Standby Reefer Unit

KingClima is a professional van and truck refrigeration equipments supplier and manufacturer,who can supply all kinds of transport refrigeration system,especially the integrated electric standby truck freezer unit. Its standby system and condenser integrate into one piece, it means the electric compressor is in the condenser, and standby system is in the electric compressor.

Compared with the traditional only road truck refrigeration units, the integrated backup power truck refrigeration units have the advantage of easy to install and more convenient. Customers don’t need to install the standby system under the truck chassis, so the whole refrigeration system looks more beautiful, compact and concise,especially used in Norther American market ,such as American ,Canada ,and some South American market.

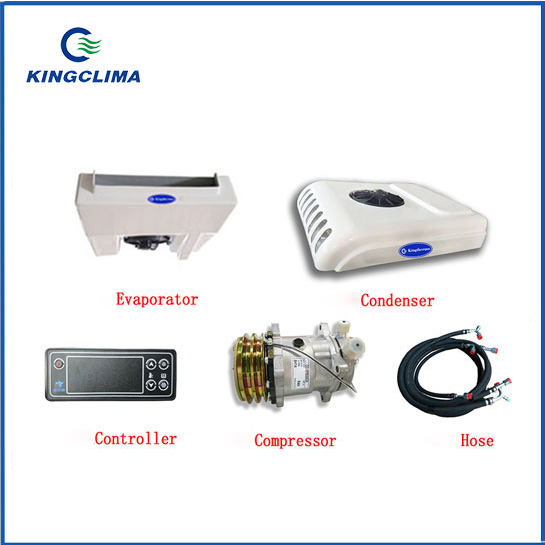

The K-260RS is electric standby refrigeration units for cargo vans, rooftop mounted, build-in compressor, easy to install.

Technical Data

Technical Of K-260RS Backup Power Van Refrigeration Units

Model		K-260RS	K-360RS	K-460RS
Container temperature		-18℃～+25℃( /Frozen)	-18℃～+25℃( /Frozen)	-18℃～+25℃( /Frozen)
Road cooling capacity（W）		2050W（0℃）	2950W（0℃）	4350W（0℃）
Road cooling capacity（W）		1080W（-18℃）	1600W（-18℃）	2200W（-18℃）
Standby capacity (W)		1980W（0℃）	2900W（0℃）	4000W（0℃）
Standby capacity (W)		1020W（-18℃）	1550W（-18℃）	2150W（-18℃）
Container volume(m3)		10m3( 0℃) 7m3(-18℃)	16m3( 0℃) 12m3(-18℃)	22m3( 0℃) 16m3(-18℃)
Voltage & Total Current		DC12V(25A) DC24V(13A) AC220V，50HZ，10A	DC12V(38A) DC24V(22A) AC220V，50HZ，12A	DC12V(51A) DC24V(30A) AC220V，50HZ，15A
Road Compressor		5S11（108cc/r）	5S14（138cc/r）	QP16(162 cc/r)
Standby Compressor （Installed in the Condenser）		DDH356LV	DDH356LV	THSD456
Refrigerant		R404A 1.1~1.2Kg	R404A 1.5~1.6Kg	R404A 2.0~2.2Kg
Dimensi ons(mm)	Evaporator	610×550×175	850×550×170	1016×655×230
Dimensi ons(mm)	Condenser With electrical standby	1360×530×365	1360×530×365	1600×650×605

Notes: 1. Ambient temperature: +38℃ (100℉) for cooling, 0℃ (32℉) for heating; K-value: ≤0.32Watts/m³℃; Recommend box volume in application is related to ambient, refrigerated body K-value and cargoes that will be loaded, etc..
Specifications are subject to change without priority notice.

Features

Features of KingClima Integrated Electric Standby Truck Refrigeration Units

● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Easy to install ,the electric standby system is in the internal of condenser, so it can decrease the wire and hose installation.
● Save the volume space to install, small size and pretty appearance
● It has a reliable and stable working function after professional testing in our lab
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,
Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc
● Reduce the fuel consumption ,meanwhile save transportation cost when the trucking transport the goods .
● Optional electric standby system AC 220V/380V,more choice for more customer request

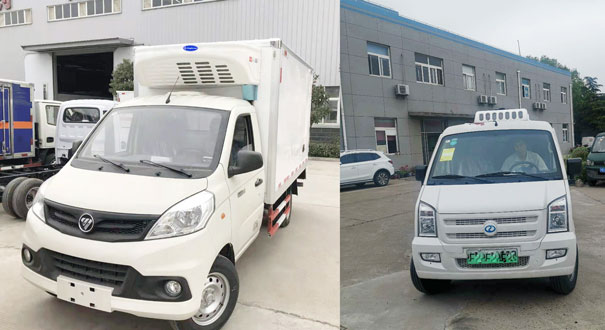

● We have two mounting type ,Top roof mounting and Front mounting
