Van Refrigeration Units

V-200C Van Refrigeration Units

KingClima small van chiller units are rooftop mounting, driven by vehicle engine and apply for 6 -17 m³ van container box. V-200/V-200C van chiller units apply to small van or medium refrigerated cargo vans with 6-17m³ van body box. The van reefer units with chiller and freezing function for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood, etc.

Model : V-200C

Cooling Capacity : 2000W(0℃）

Application : 5 -12m³

Compressor : SD5S11(108CC/r) /QP13

GET QUOTE

Introduction :

Technical Data :

Features :

Application :

INQUIRY

Introduction :

KingClima V-200C Van Chiller Unit System Optional Functions

AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
Optional electric standby system AC 220V/380V

Technical Data :

Model		V-200C
Temperature Range In Container		-18℃ ~ +30℃ / -0.4℉ ~ +86℉
Cooling Capacity		2200W/1720Kcal/6824BTU （0℃/32℉） 1125W/946Kcal/3753BTU （-18℃/-0.4℉）
Driven Model		Direct Vehicle Engine Driven
Voltage DC (V)		12V/24V
Refrigerant		R404a
Refrigerant Charge		0.8Kg ~ 0.9Kg
Box Temperature Adjustment		Electronic digital display
Safety Protect		High and low pressure switch
Defrosting		Hot gas defrost (CPR)
Compressor	Model	SD5S11(108CC/r) /QP13
Condenser	Coil	Aluminum micro-channel parallel flow coils
	Fan	1 Axial Fan
	Dimensions&Weight	700×700×190 mm & 15kg
Evaporator	Coil	Aluminum foil with internal ridge copper tube
	Fan	1 Axial Fans
	Dimensions&Weight	610×550×175 mm & 13.5 kg
Box Volume (m³)		5m³ (-18℃/-0.4℉) 12m³ (0℃/32℉)
Optional Function		Heating, Electric standby system AC 220V/380V, CPR Valve

Features :

V-200C Van Chiller Unit System Features :

● Apply for all kinds of small refrigeration vans
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc

Application :

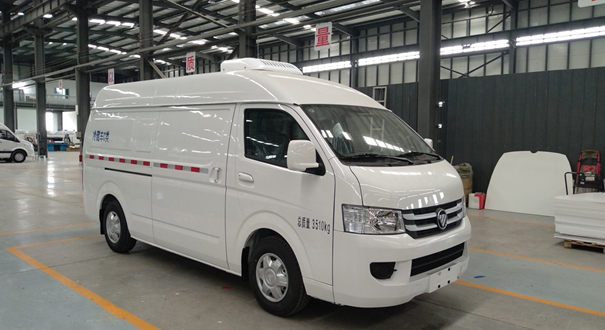

KingClima V-200C Van Chiller Unit
